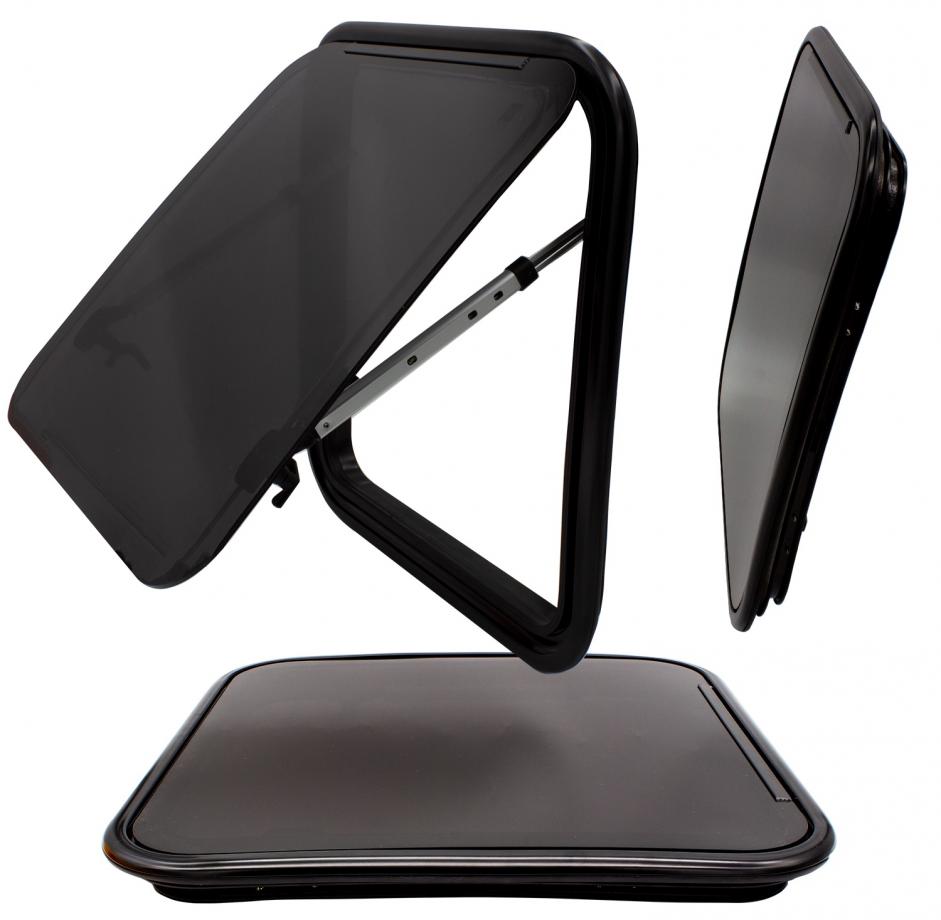

Hinged window W3A-5000R for curved walls

Elegant design meets a high level of functionality

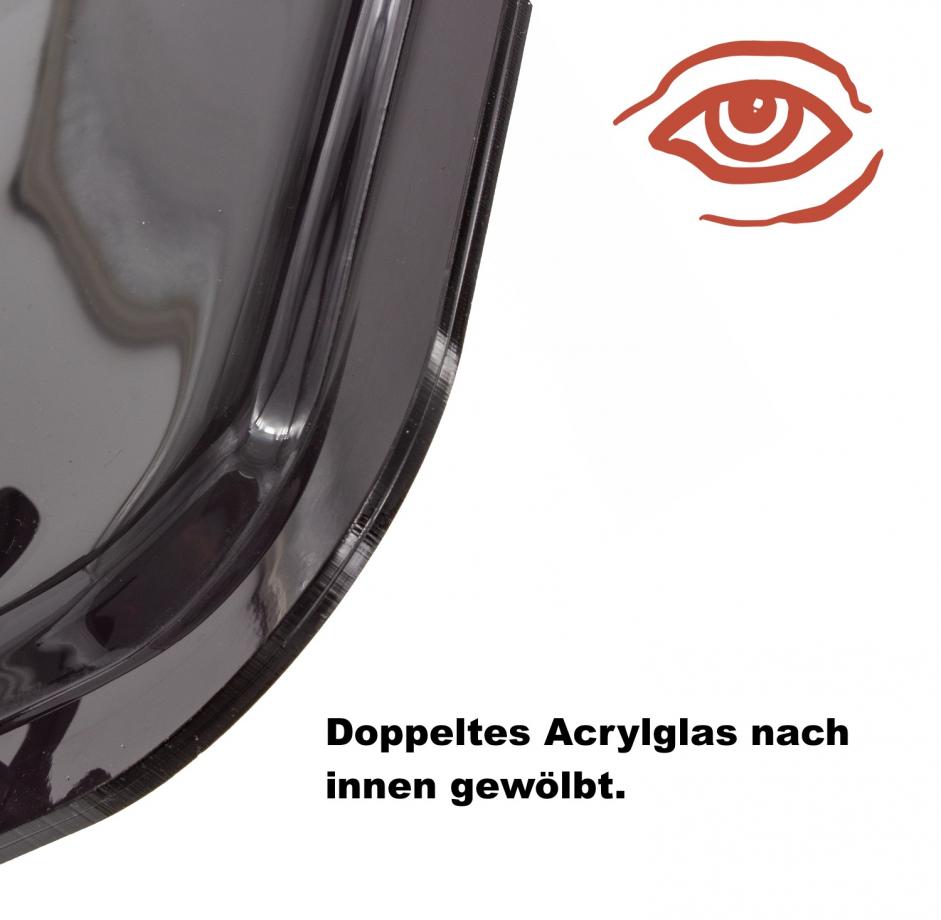

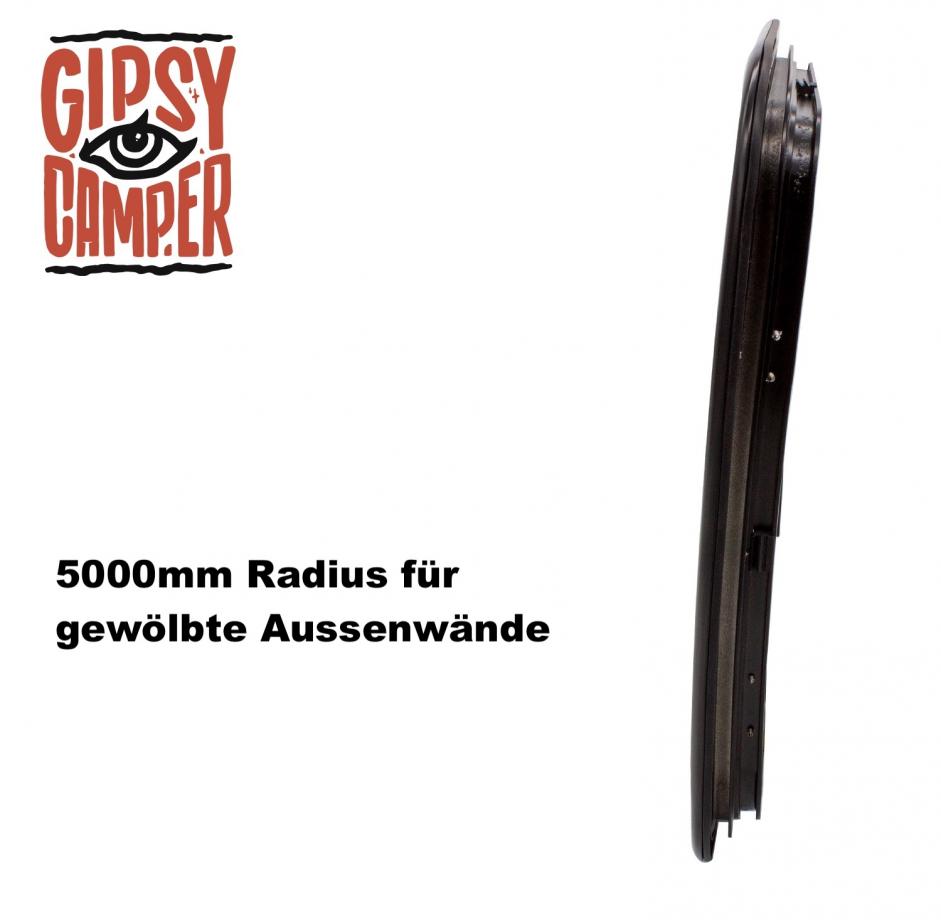

The double-glazed acrylic glass pane is curved inwards and therefore not only ensures excellent insulating properties, but also, thanks to the 5000mm radius of the window, an elegant design for curved walls.

The W3A-5000R motorhome vent window with its aluminum frame, which is only 1.2 cm flat, hardly builds up and is therefore particularly suitable for panel vans and vans. The frame width is only 2cm and must be added to the cutout size for the overall size.

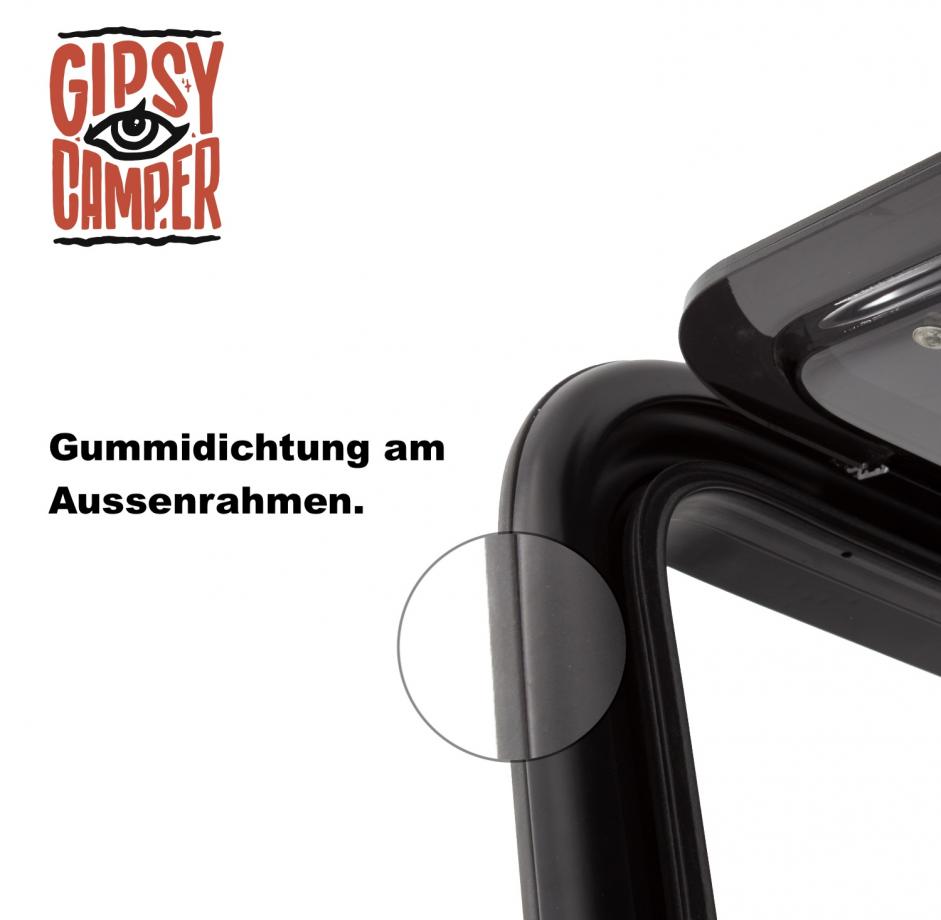

A sealing rubber is attached to the window frame, which ensures a clean and tight seal on the body (no unsightly leakage of the sealant).

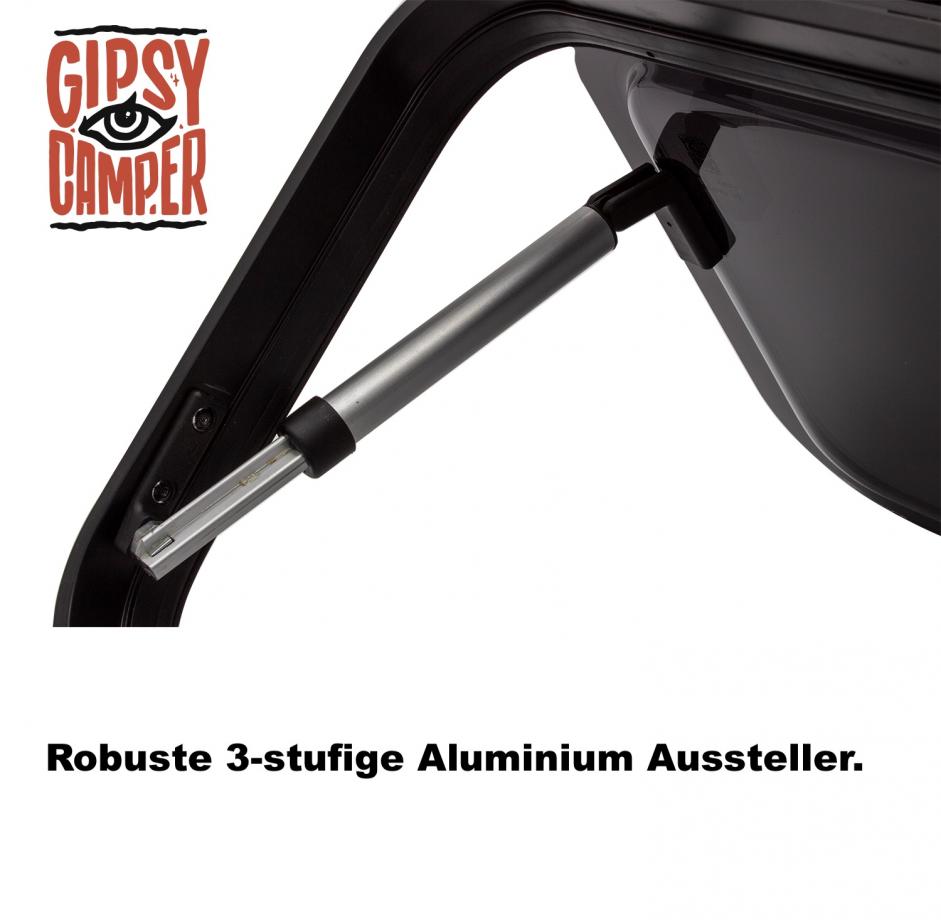

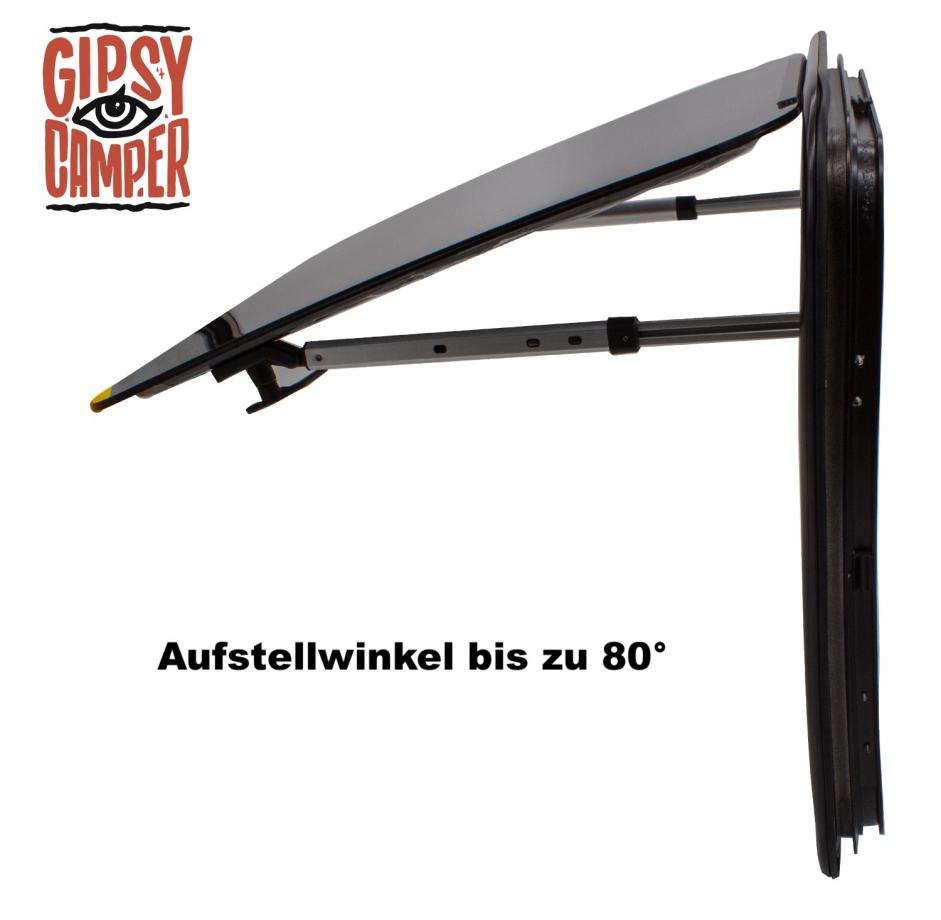

The 3-stage telescopic stands are made of aluminum and are extremely robust (no annoying lowering of the vent windows). The well thought-out design of the hinged windows allows an opening angle of up to 80°.

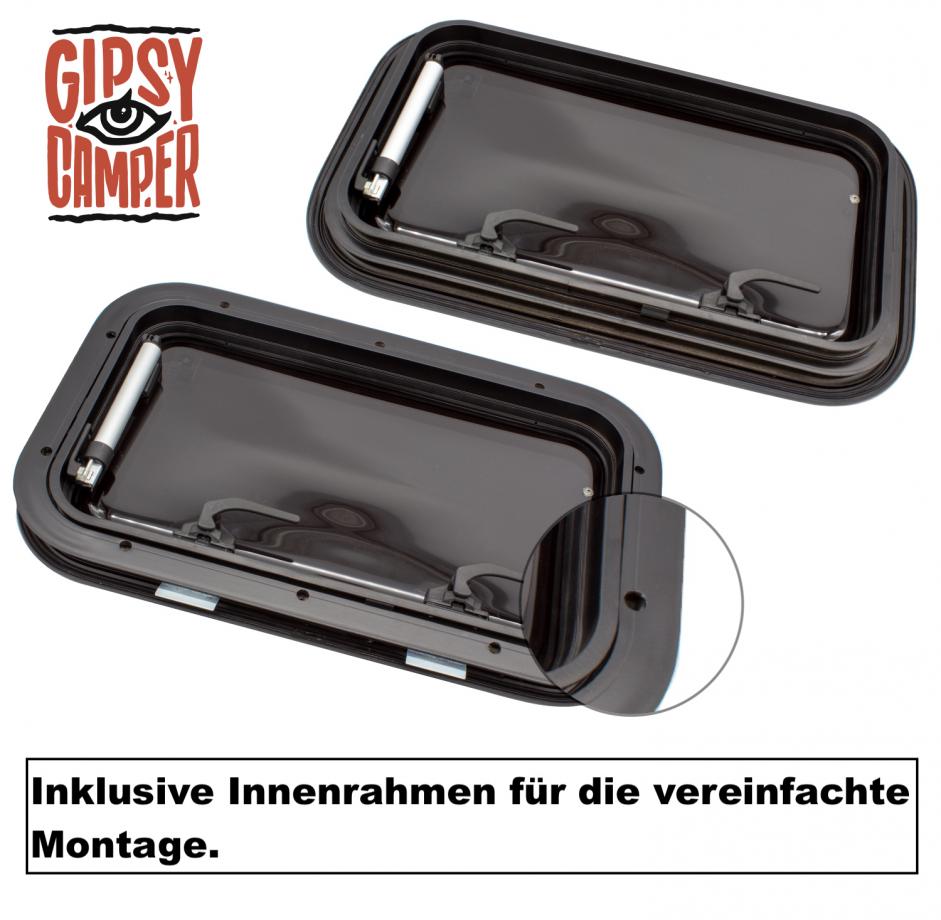

A black aluminum inner frame is included with this vent window. This not only makes installation a lot easier, but also ensures a neat look in the interior. The inner frame connects the wooden frame with the vent window and thus ensures maximum stability. Paneling or felt can be easily placed under the frame and thus simplify the motorhome interior design a lot. A suitable blackout with insect protection is optionally available in our shop.

The universally applicable hinged window has a corner radius of 70mm and is suitable for a wall thickness of 30mm. The dimensions given are the cutout dimensions.
The frame width is only 2cm and must be added to the cutout size for the overall size. Assembly instructions and screws are included, all that is needed is a dabable sealant.

The window is equipped with an E-mark and therefore does not require TÜV approval.

Click here for the installation instructions

• E-mark available
• High quality
• Tinted acrylic glass pane
• Inwardly curved acrylic glass pane
• Double glazed
• Black aluminum frame
• Extremely light
• Rubber seal on the inner frame
• Inner roller blind with insect protection optionally available
• Opening angle up to 80°
• Wall thickness 30 mm
• Corner radius 70mm
• Including inner frame for simplified assembly
• Available in different sizes
• Incl. assembly instructions and screws

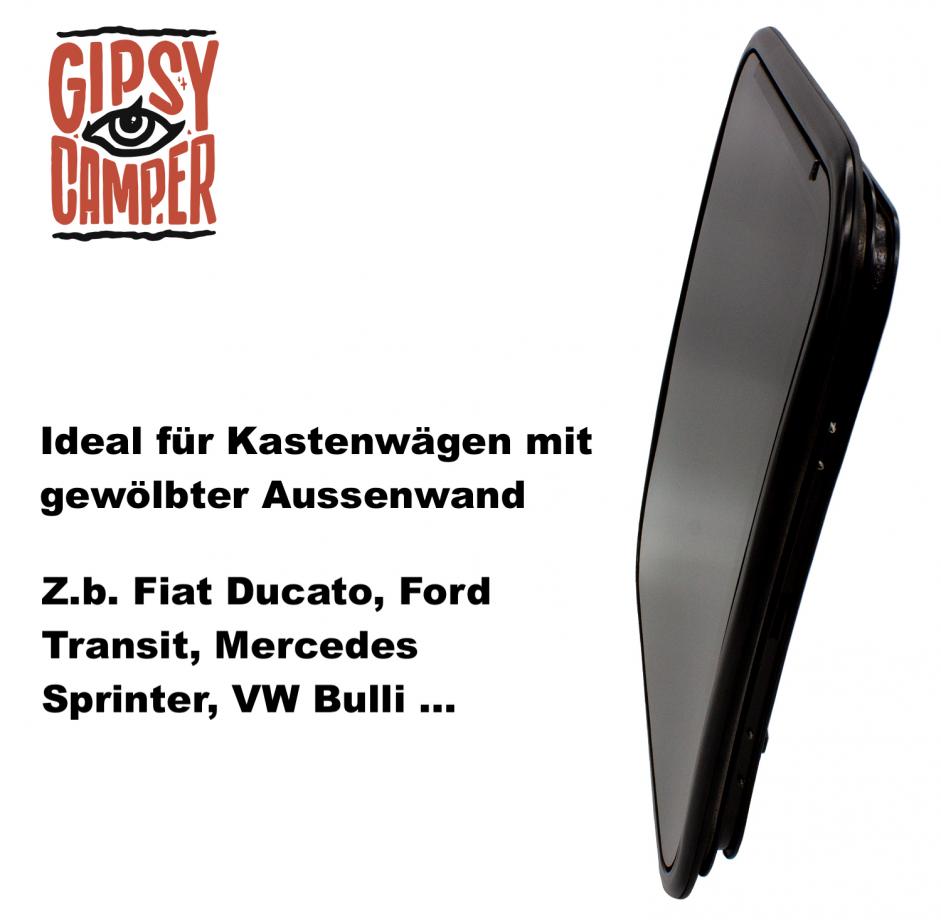

• Hinged window with a 5000mm radius perfect for panel vans
